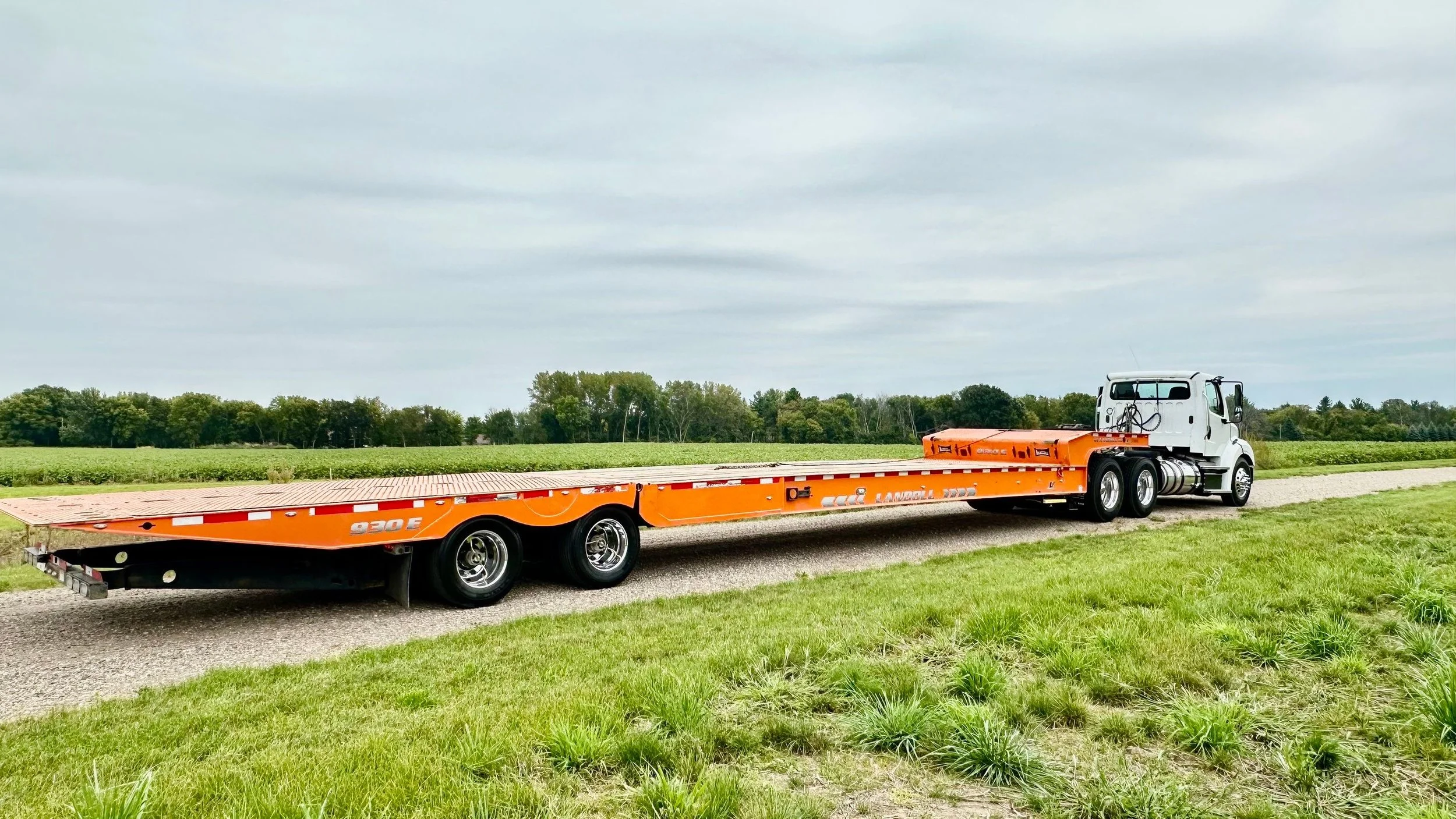

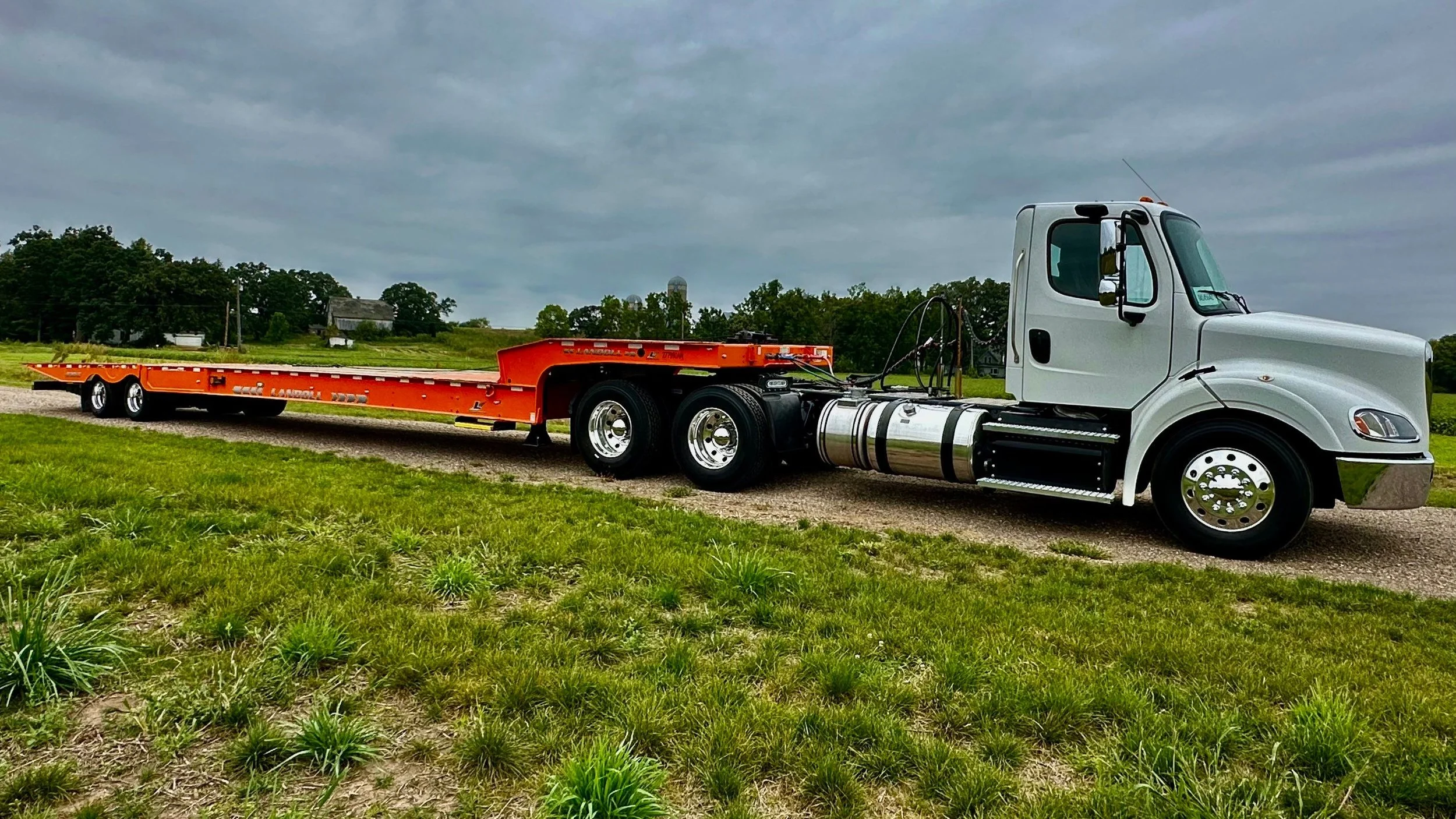

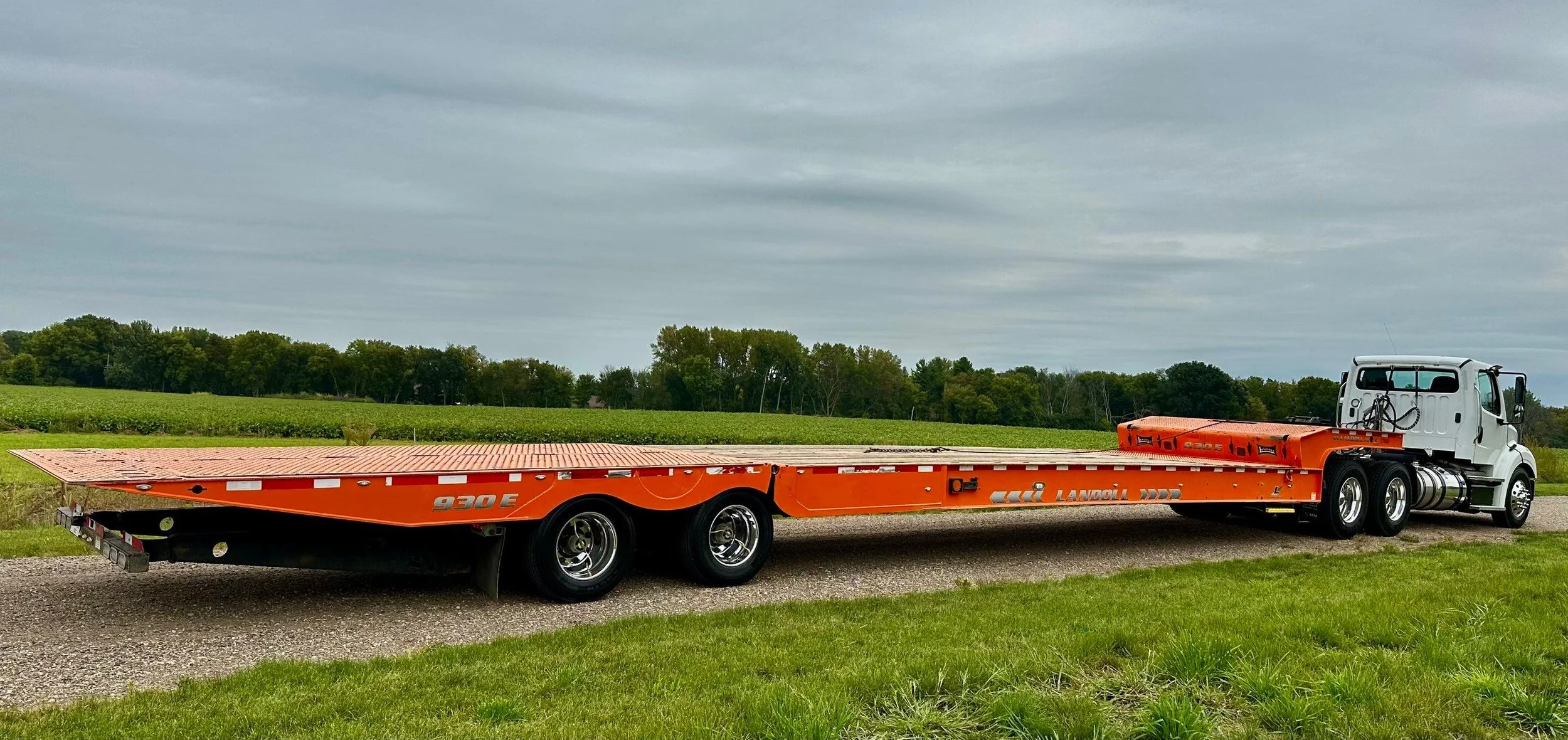

2021 Landoll 930E 51’ Traveling Tail Lowboy Trailer
Model: 930E-51-15
Capacity: 35 Ton
Base Weight: 19,250 lbs (+/- 3%)
Length: 51 ft
Tail Length: 15 ft
Deck: 102” x 41’ 3”
Axles: 2
The 930E tail is capable of lifting 24,000 lbs up to 53″ dock height.
Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.
The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheelbase.
Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 E-Series trailers. The tail can raise and lift 24,000 lbs up to 57″ dock height.
The low-load tail angle ensures easy clearance for loading low-sitting equipment, providing seamless loading capabilities. The hydraulic control allows for efficient and convenient loading and unloading operations, all managed through a single control point.
